FR-TTL-D/H
Peripheral Board

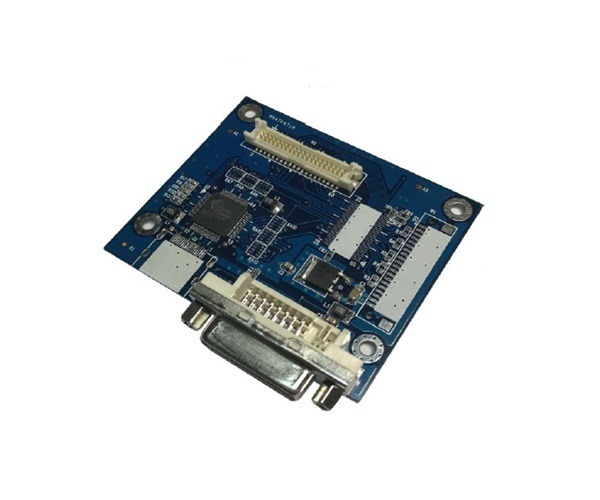

Board for TTL input 18/24-bit RGB signal to DVID output connector
- Product Features
- Technical
| Product Features | |
| Converting input signals to TMDS with non-sync regulation | |
| TTL-data latch at falling edge of pixel clock. (Max. TBD MHz) | |
| No EDID/ HDCP suppported |
| Specification | |
| FR-TTL18-D | Board for TTL 18-bit single to DVID connector |
| FR-TTL18-H | Board for TTL 18-bit single to HDMI connector |
| FR-TTL24-D | Board for TTL 24-bit single to DVID connector |
| FR-TTL24-H | Board for TTL 24-bit single to HDMI connector |
| Downloads | |
| FR-TTL-D/H User Manual | Download |
