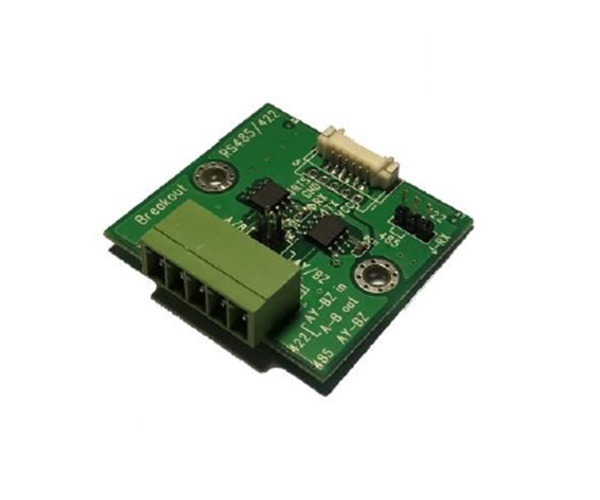

FR-48522-W/D

Peripheral Board
Making UART-TTL logical level convert to RS422/ RS485
FR-48522-W/D
  • Product Features
  • Technical
Product Features
UART-TTL with 3.3V/ 5V tolerance input
An optional 120 Ohm (Terminate Resistor) built on board
RoHS Compliant
Specification
FR-48522-W
  • Input: wafer-6pin,1.25mm
  • Output: Terminal Block ECH350RM,5-pin,3.5mm, Male
FR-48522-D
  • Input: Header-5pin,2.0mm
  • Output: Terminal Block ECH350RM,5-pin,3.5mm, Male
Downloads
FR-48522-W/D User Manual Download
