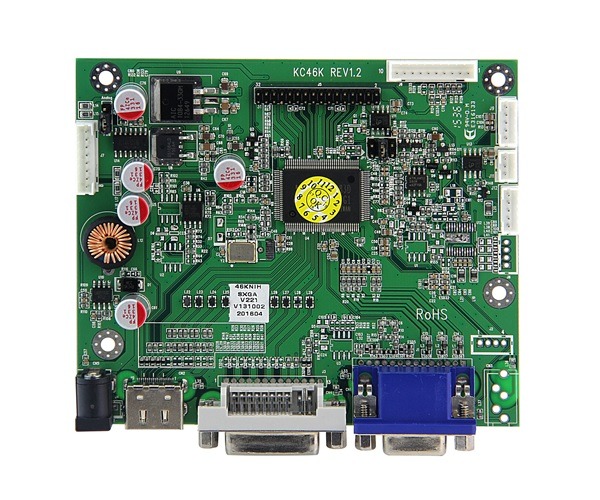

FBDCKC46A
Industrial Display Solution
Application:
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
5. HMI..etc.
1. Security System
2. GPS
3. Medical Equipment
4. IP phone
5. CNC machine
5. HMI..etc.
- Product Features
- Technical
| Product Features | |
| VGA/ DVI input Max. 1920*1080 | |
| LVDS interface | |
| DC 12V | |
| Operation temperature -20℃ to 70℃ |
| Specification | |
| Resolution | Max. 1920 × 1080 |
| Interface Type | LVDS_8~10Bit |
| Power voltage(LCD) | 3.3/5/12 V |
| Power voltage(Backlight) | 5/12V |
| Input Signal | VGA, DVI |
| OSD | PH 2.0mm. 10Pin.180° |
| Power Input | DC 12V (Jack ψ2.5) |
| EDID | VESA DDC2B |
| Operation temperature | -20℃ ~ 70℃ |
| Dimension ( L x W) | 113 mm× 95 mm |
